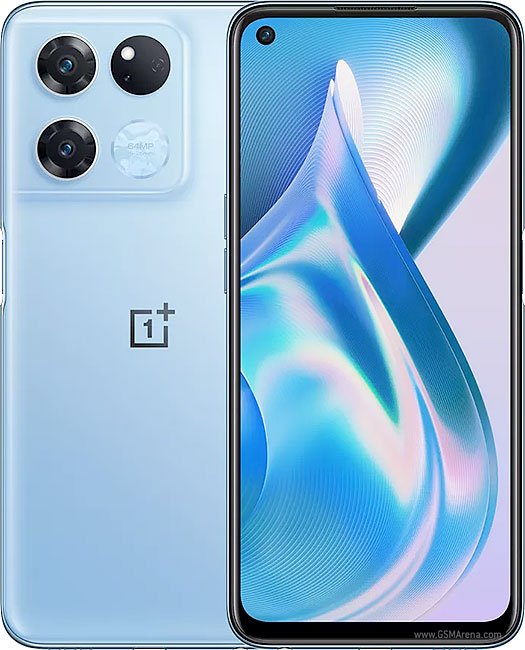

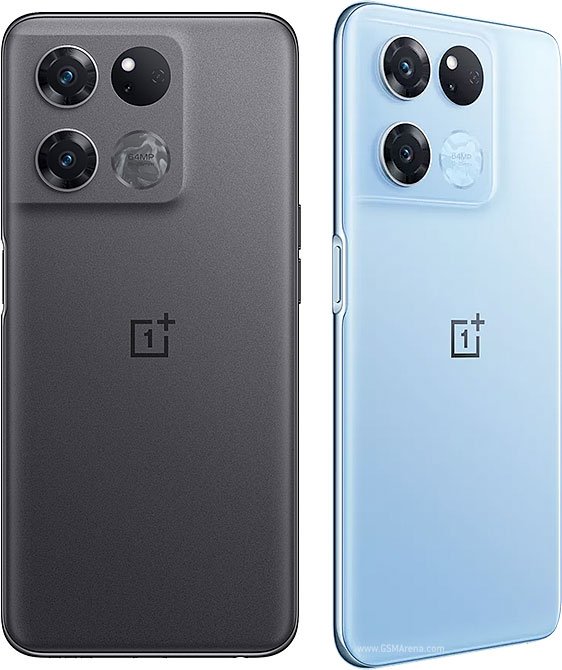

OnePlus Ace Racing

AI Portrait | AI LinkBoost | Released 2024, January 24

Storage

256GB/512GB/1TB

OS

Android 14, UI 6.1

Frame

Titanium Frame

45w | 15w

6.8"

45w | 15w

200 MP

Snapragon

12GB RAM

45w | 15w

5000mAh

OnePlus Ace Racing Full Specifications

Network	Technology	GSM / CDMA / HSPA / CDMA2000 / LTE / 5G
	2G bands	GSM 850 / 900 / 1800 / 1900
		CDMA 800
	3G bands	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
		CDMA2000 1x
	4G bands	1, 3, 4, 5, 7, 8, 18, 19, 28, 34, 38, 39, 40, 41
	5G bands	1, 3, 5, 8, 28, 41, 77, 78 SA/NSA
	Speed	HSPA, LTE, 5G
Launch	Announced	2022, May 17
	Status	Available. Released 2022, May 31
Body	Dimensions	164.3 x 75.8 x 8.7 mm (6.47 x 2.98 x 0.34 in)
	Weight	205 g (7.23 oz)
	SIM	Nano-SIM + Nano-SIM
Display	Type	IPS LCD, 120Hz, 480 nits (typ), 600 (HBM)
	Size	6.59 inches, 104.5 cm2 (~83.9% screen-to-body ratio)
	Resolution	1080 x 2412 pixels, 20:9 ratio (~401 ppi density)
Platform	OS	Android 12, ColorOS 12.1
	Chipset	Mediatek Dimensity 8100 Max (5 nm)
	CPU	Octa-core (4x2.85 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55)
	GPU	Mali-G610 MC6
Memory	Card slot	No
	Internal	128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM
		UFS 3.1
Main Camera	Triple	64 MP, f/1.7, 25mm (wide), PDAF 8 MP, f/2.2, 15mm, 119˚ (ultrawide), 1/4.0", 1.12µm 2 MP, f/2.4, (macro)
	Features	LED flash, HDR, panorama
	Video	4K@30fps, 1080p@30/60/120fps, gyro-EIS
Selfie camera	Single	16 MP, f/2.1, 26mm (wide), 1/3.09", 1.0µm
	Features	HDR
	Video	1080p@30fps, gyro-EIS
Sound	Loudspeaker	Yes, with stereo speakers
	3.5mm jack	Yes
Comms	WLAN	Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
	Bluetooth	5.3, A2DP, LE, aptX HD
	Positioning	GPS, GLONASS, GALILEO, BDS, QZSS
	NFC	Yes
	Radio	No
	USB	USB Type-C 2.0
Features	Sensors	Fingerprint (side-mounted), accelerometer, gyro, proximity, compass
Battery	Type	Li-Po 5000 mAh
	Charging	67W wired, 80% in 29 min
Misc	Colors	Black, Blue
	Models	PGZ110
	Price	About 280 EUR
